Cane Harvester Chain
Description

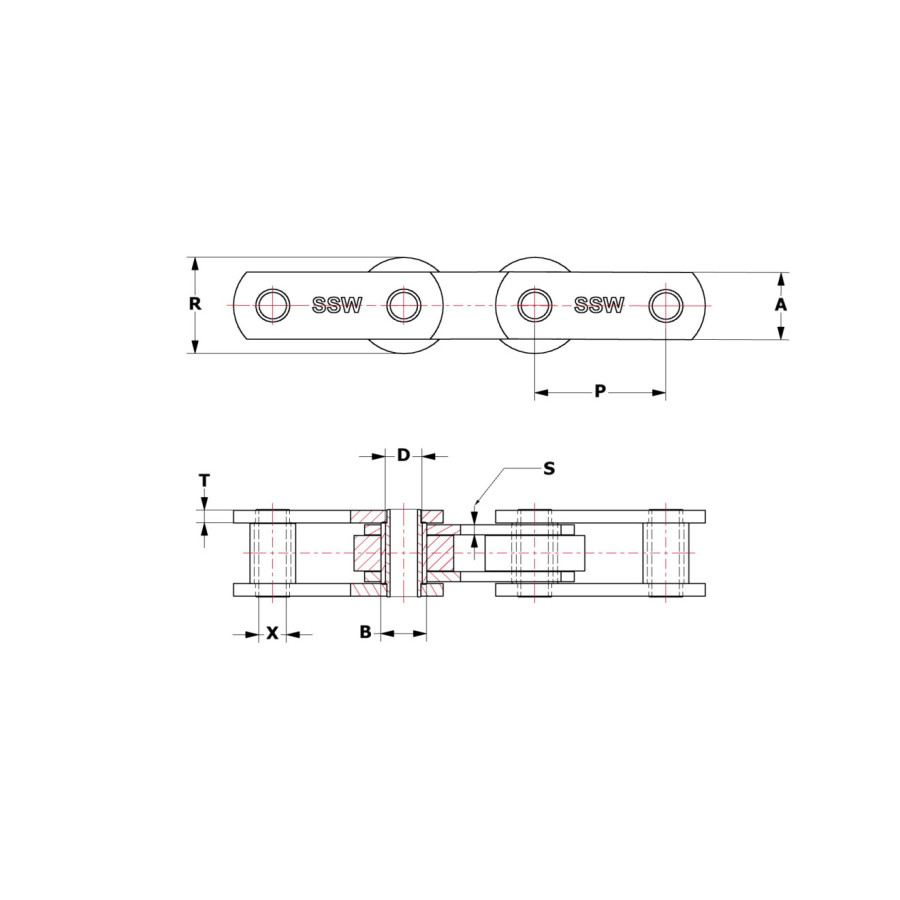

Our Cane Harvester Chains are manufactured by keeping Performance & longevity in mind. These Chains also feature optional Heat-Treated Side Plates for double Tensile Strength along with Case Carburised Alloy Steel Pins, Bushes & Thru Hardened Rollers for maximum wear resistance These chains also employ Hollow Pins to allow chain accessories through the Chain Strands.| Chain No. | Pitch | U.T.S. | pin | Bush | Roller | Side Plate | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | O.D. D | LD. X | Length | Dia. D | Dia. R | Length | Depth A | Thk. T | Thk. S | ||
| SSW 0201 | mm | 50.80 | 2,700 | 13.97 | 10.16 | 44.00 | 18.03 | 31.80 | 14.00 | 25.00 | 4.00 | 4.00 |
| SSW 0202 | mm | 50.80 | 2,700 | 13.97 | 10.16 | 44.00 | 18.03 | 31.80 | 14.00 | 25.00 | 4.00 | 4.00 |
| SSW 0203 | mm | 65.50 | 5,500 | 19.05 | 13.20 | 51.80 | 23.62 | 47.63 | 18.05 | 40.00 | 4.00 | 5.00 |
