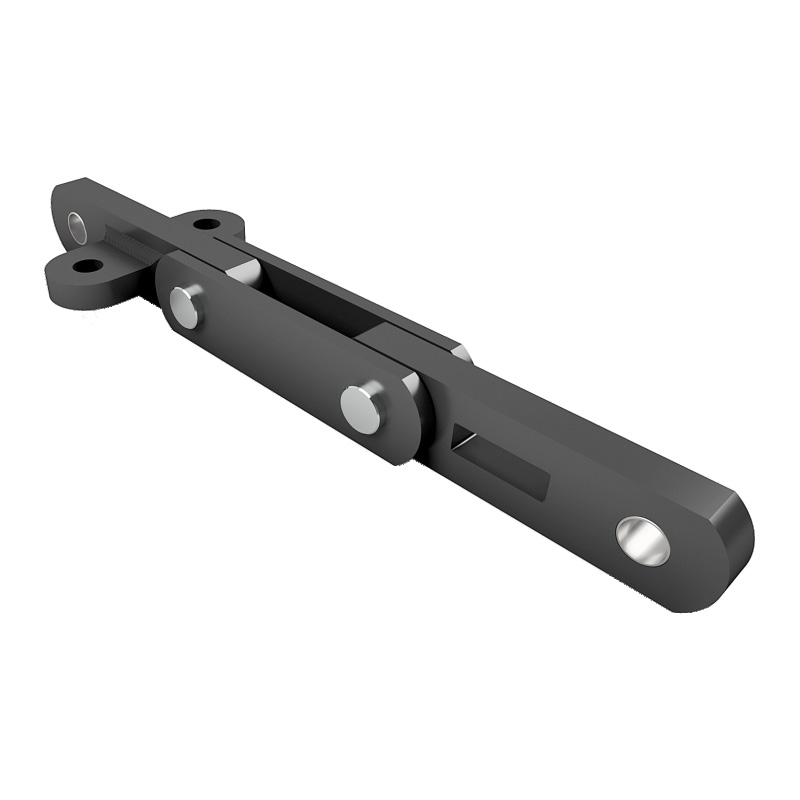

Block & Bar Type Diffuser Chain
Description

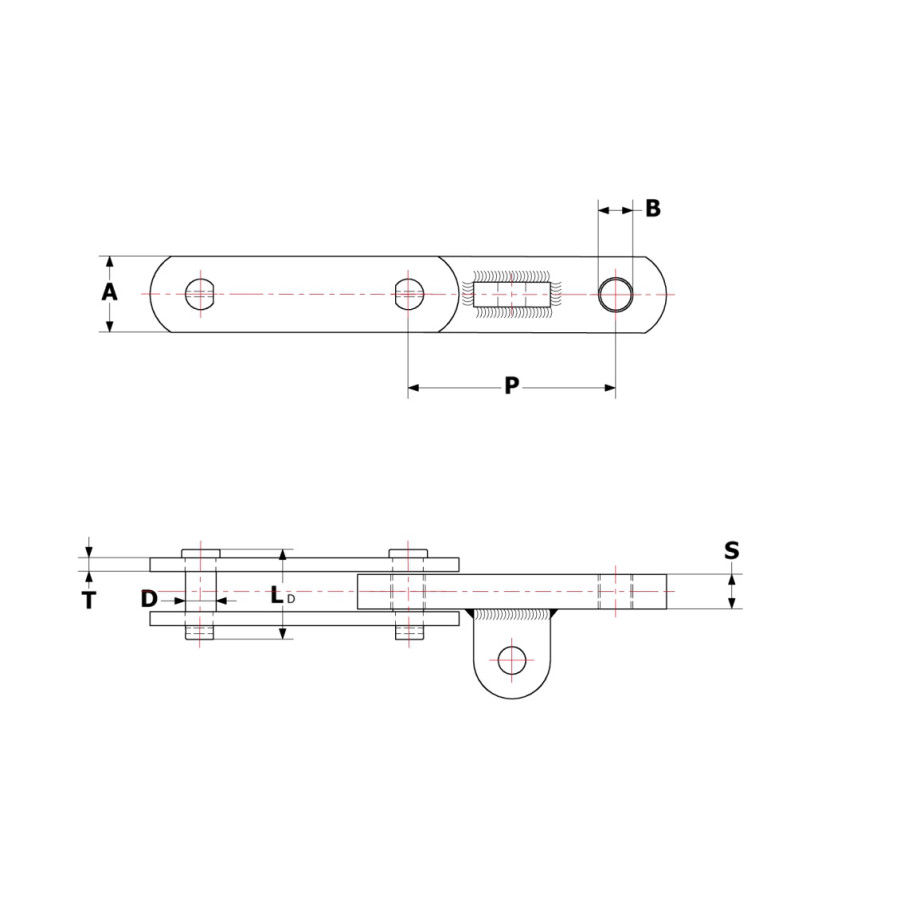

| Chain No. | Style | Pitch | U.T.S. | pin | Bush | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | Dia D | Length LD | Dia. B | A | T | S | |||
| SSW 0611 | I | mm | 250.0 | 61,100 | 31.8 | 87.4 | 38.0 | 75.0 | 16.0 | 33.0 |
| SSW 0622 | II | mm | 200.0 | 18,000 | 19.3 | 57.0 | 25.0 | 45.0 | 8.0 | 26.0 |
| Chain No. | Style | Pitch | U.T.S. | pin | Bush | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | Dia D | Length LD | Dia. B | A | T | S | |||
| SSW 0611 | I | mm | 250.0 | 61,100 | 31.8 | 87.4 | 38.0 | 75.0 | 16.0 | 33.0 |
| SSW 0622 | II | mm | 200.0 | 18,000 | 19.3 | 57.0 | 25.0 | 45.0 | 8.0 | 26.0 |
