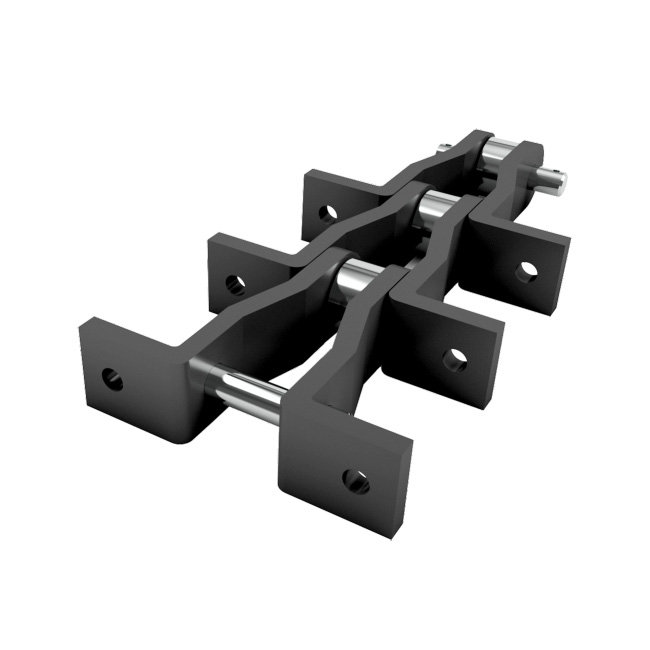

Travelling Grate Chain - Style I
Description
Travelling grate chains are used in boiler houses of sugar plants, paper plants, fertilizer plants etc. to convey fly ash. Carefully selected raw materials are used for the chain which can withstand the temperature up to 400˚C during operation.| Chain No. | Pitch | U.T.S. | pin | Roller | Side Plate | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | Dia D | Length LD | J | Dia R | Length LR | A | H | W | X | ||
| SSW 2021 | mm | 146.00 | 40,000 | 24.75 | 130.00 | 113.00 | 57.75 | 32.50 | 63.00 | 17.50 | 182.00 | 230.00 |
| SSW 2022 | mm | 146.00 | 40,000 | 24.65 | 136.00 | 114.00 | 57.0 | 32.0 | 65.00 | 16.00 | 186.00 | 230.00 |
