Flat Sided As2 Att. Type Chain
Description
We offer Bagasse Carrier Chains from 20,000 Kgf to 100,000 Kgf. Breaking Strength. These Chains are used to Convey Bagasse to the Boilers or Storage Points in the Sugar Mills. Since the Bagasse contains moisture, it makes these Chains prone to Corrosion, hence we recommend Stainless Steel Pins & Bushes along with Alloy Steel Side Plates for these chains. These chains are offered with Heat Treated Carbon Steel Side Plates & Rollers and Alloy Steel Pins & Bushes as standard. In the Sugar Industry, these chains are more commonly known as:- Main Bagasse Carrier (MBC)
- Return Bagasse Carrier (RBC)
- Bagasse Elevator Chain (BEC)

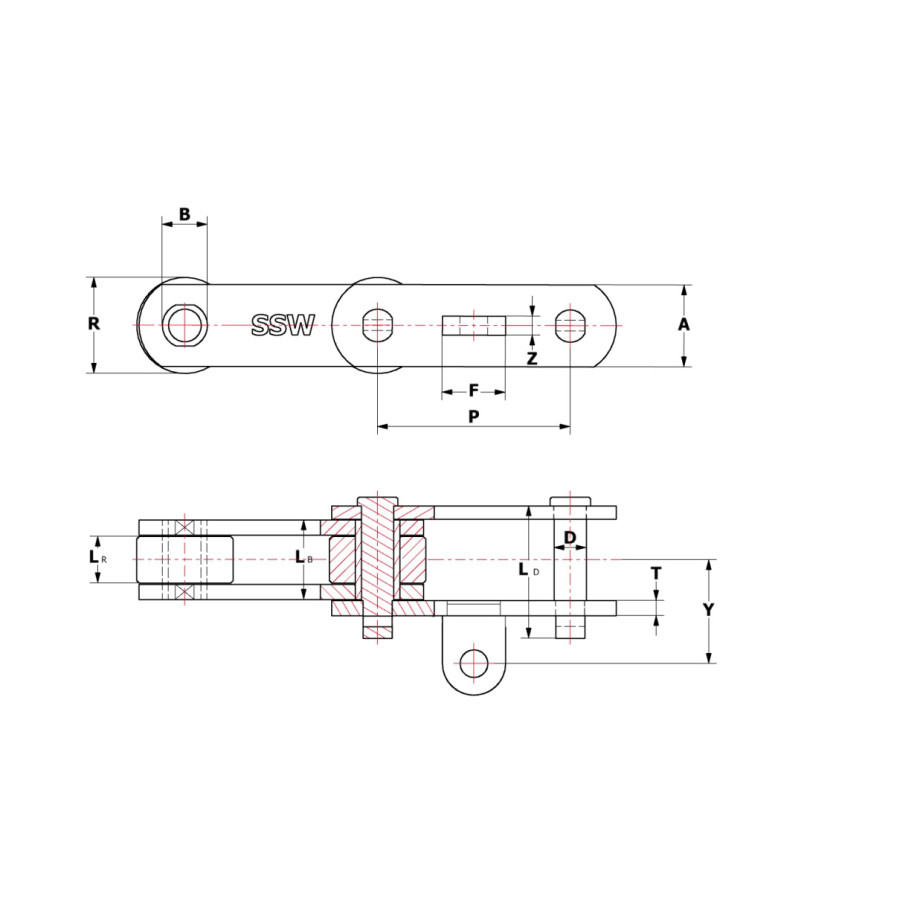

| Chain No. | Pitch | U.T.S. | pin | Bush | Roller | Side Plate | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | Dia D | Length LD | Dia. B | Length LB | Dia. R | Length LR | Depth A | Thk. T | F | Y | Z | ||
| SSW 0701 | mm | 101.6 | 20,000 | 17.0 | 78.0 | 25.0 | 47.0 | 60.0 | 29.0 | 45.0 | 8.0 | 50.0 | 65.0 | 10.0 |
| SSW 0702 | mm | 101.6 | 25,000 | 18.0 | 78.0 | 25.4 | 51.0 | 65.0 | 29.0 | 50.0 | 10.0 | 50.0 | 70.0 | 12.0 |
| SSW 0703 | mm | 102.0 | 25,000 | 18.0 | 78.0 | 25.0 | 52.0 | 65.0 | 30.0 | 50.0 | 10.0 | 50.0 | 70.0 | 12.0 |
| SSW 0704 | mm | 150.0 | 20,000 | 23.0 | 83.0 | 30.0 | 53.0 | 75.0 | 35.0 | 60.0 | 8.0 | 50.0 | 75.0 | 12.0 |
| SSW 0705 | mm | 150.0 | 30,000 | 23.0 | 91.0 | 30.0 | 57.0 | 75.0 | 35.0 | 60.0 | 10.0 | 50.0 | 75.0 | 12.0 |
| SSW 0705A | mm | 152.4 | 30,000 | 23.0 | 91.0 | 30.0 | 57.0 | 75.0 | 35.0 | 60.0 | 10.0 | 50.0 | 75.0 | 12.0 |
| SSW 0706 | mm | 150.0 | 40,000 | 25.0 | 101.0 | 33.0 | 61.0 | 75.0 | 35.0 | 65.0 | 12.0 | 50.0 | 85.0 | 16.0 |
| SSW 0706A | mm | 152.4 | 40,000 | 25.0 | 101.0 | 33.0 | 61.0 | 75.0 | 35.0 | 65.0 | 12.0 | 50.0 | 85.0 | 16.0 |
| SSW 0707 | mm | 150.0 | 60,000 | 27.0 | 101.0 | 36.0 | 65.0 | 75.0 | 35.0 | 65.0 | 14.0 | 65.0 | 95.0 | 20.0 |
| SSW 0707A | mm | 152.4 | 60,000 | 27.0 | 101.0 | 36.0 | 65.0 | 75.0 | 35.0 | 65.0 | 14.0 | 65.0 | 95.0 | 20.0 |
| SSW 0708 | mm | 200.0 | 60,000 | 30.0 | 118.0 | 38.0 | 69.0 | 90.0 | 35.0 | 75.0 | 16.0 | 80.0 | 100.0 | 20.0 |
| SSW 0709UT | mm | 200.0 | 80,000 | 32.0 | 118.0 | 43.0 | 69.0 | 90.0 | 35.0 | 75.0 | 16.0 | 80.0 | 100.0 | 25.0 |
| SSW 0709 | mm | 200.0 | 80,000 | 32.0 | 126.0 | 42.0 | 73.0 | 90.0 | 35.0 | 80.0 | 18.0 | 80.0 | 105.0 | 25.0 |
| SSW 0710 | mm | 229.0 | 60,000 | 30.0 | 122.0 | 40.0 | 72.0 | 95.0 | 38.0 | 80.0 | 16.0 | 85.0 | 105.0 | 20.0 |
| SSW 0711 | mm | 229.0 | 75,000 | 30.0 | 122.0 | 40.0 | 72.0 | 95.0 | 38.0 | 80.0 | 16.0 | 85.0 | 105.0 | 25.0 |
| SSW 0712 | mm | 229.0 | 80,000 | 32.0 | 130.0 | 42.0 | 76.0 | 95.0 | 38.0 | 80.0 | 18.0 | 85.0 | 105.0 | 25.0 |
| SSW 0712 | mm | 200.0 | 100,000 | 36.0 | 136.0 | 48.0 | 83.0 | 105.0 | 45.0 | 80.0 | 18.0 | 85.0 | 105.0 | 25.0 |
