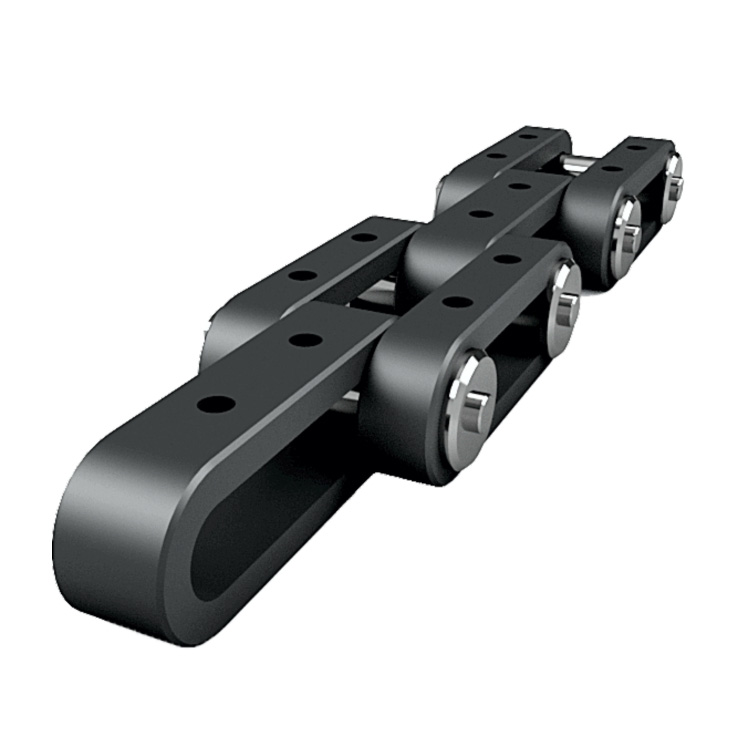

Loop Type Cane Carrier Chain
Description
Loop Type Cane Carrier Chain is an excellent alternative to the conventional K2 attachment type Cane Carrier Chain because of its High Breaking Strength along with an added benefit of Easy Maintenance. The Links and Pins are manufactured by Drop Forging. The Relatively Simple Construction along with the lesser number of Components make Assembly & Disassembly very easy. The Pins can be turned by 180 degrees, allowing the unworn area of the pin to contact the inner link hence increasing the Service life of the Chain.| Chain No. | Pitch | U.T.S. | pin | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | Dia D | Length LD | A | T | S | W | E | Bolt Dia. H | ||
| SSW 0541 | mm | 152.4 | 145,000 | 38.9 | 156.0 | 77.8 | 38.1 | 50.8 | 90.0 | 76.2 | 17.0 |
| SSW 0542 | mm | 228.6 | 145,000 | 38.9 | 159.0 | 80.0 | 40.0 | 50.0 | 91.0 | 95.0 | 17.0 |
