Cobra Style Chain For Main Cane & Auxiliary Cane Carrier
Description

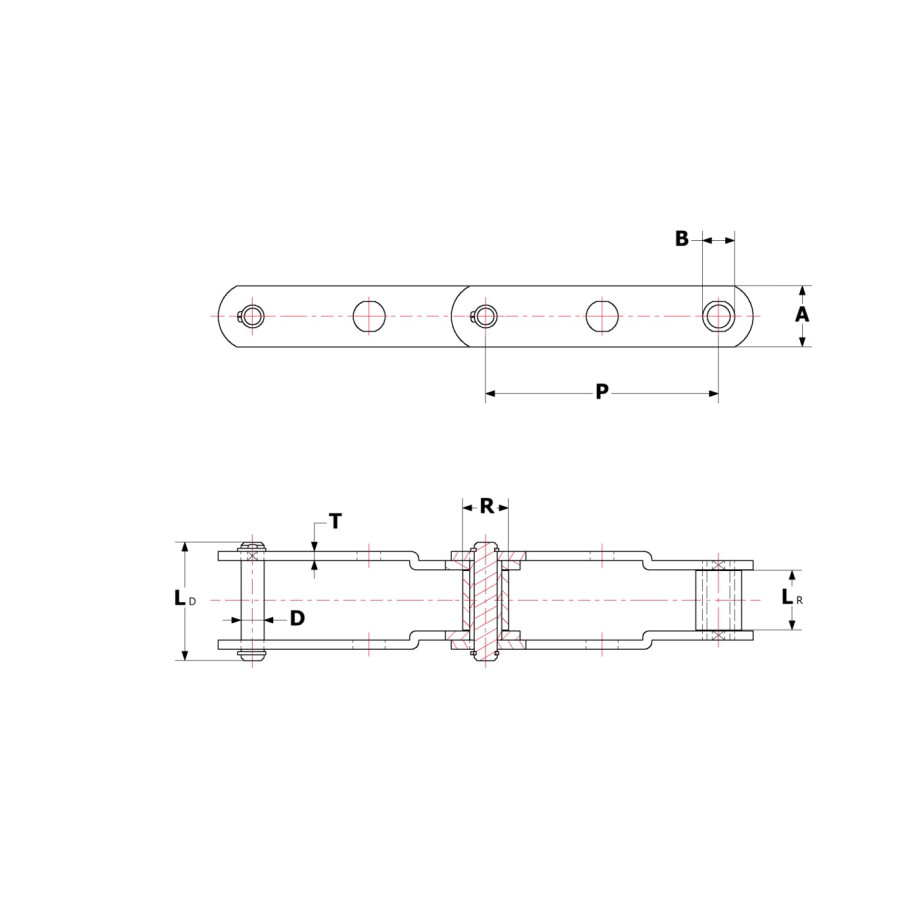

Cobra style chain is the most advanced Cane Carrier Chain available in the market currently. Since this chain employs Outboard Rollers, maintenance is easy as there is no need to disassemble the complete chain. This Chain also offers best Impact resistance and significantly longer service life. We manufacture all the components of this chain such as Axles, Bushes, Pins, Rollers, Brackets & Slats and can be made to order individually as well.| Chain No. | Pitch | U.T.S. | pin | Bush | Roller | Side Plate | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| P | (Kgf.) | Dia D | Length LD | Dia. B | Dia. R | Length LR | Depth A | Thk. T | ||
| SSW 0571 | mm | 152.4 | 40,000 | 22.20 | 116.00 | 31.75 | 44.45 | 55.50 | 63.50 | 10.00 |
| SSW 0572 | mm | 228.6 | 50,000 | 22.23 | 154.20 | 32.20 | 44.45 | 49.23 | 63.50 | 12.70 |
| SSW 0573 | mm | 304.8 | 63,000 | 25.40 | 154.76 | 38.10 | 57.15 | 76.20 | 63.50 | 12.70 |
| SSW 0574 | mm | 304.8 | 92,000 | 31.75 | 161.90 | 44.30 | 63.50 | 69.85 | 88.90 | 15.88 |
| SSW 0575 | mm | 304.8 | 100,000 | 34.90 | 162.70 | 44.30 | 63.50 | 69.85 | 88.90 | 15.88 |
| SSW 0576 | mm | 304.8 | 115,000 | 38.10 | 161.44 | 53.90 | 79.38 | 70.64 | 101.60 | 15.88 |
| SSW 0577 | mm | 304.8 | 140,000 | 38.10 | 195.58 | 47.63 | 88.90 | 70.61 | 101.60 | 15.88 |
| SSW 0578 | mm | 304.8 | 160,000 | 41.40 | 195.85 | 55.62 | 101.60 | 92.20 | 101.60 | 19.05 |
